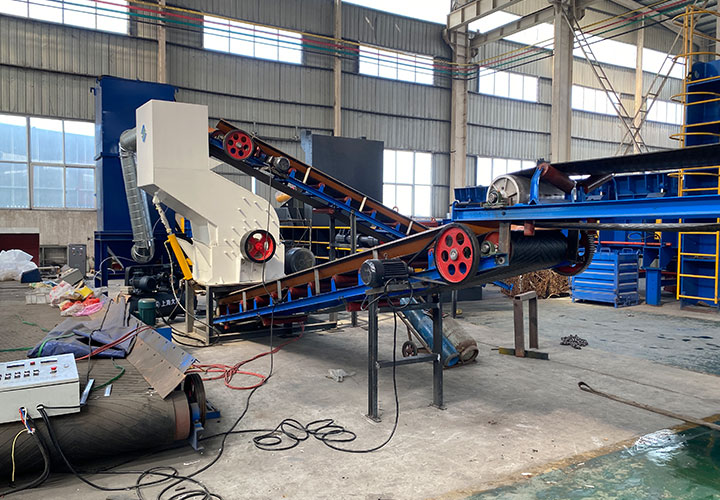

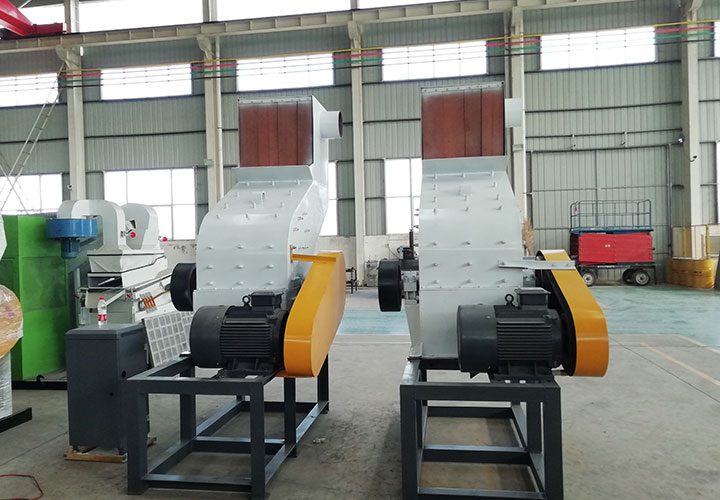

01.Crushing line host
The main body shell of the crushing line is made of extra thick steel plate, with high manganese cast steel lining that can be replaced; The host rotor disk is installed on a horizontal axis, with pin shafts distributed around the circumference of the rotor disk and hammer heads suspended in the axial direction; The spindle is supported by ball bearings, lubricated and cooled by circulating oil, and equipped with temperature sensors; The feeding port is equipped with a hydraulic roller feeding device, with one high and one low position, rotating in the same direction, which can flatten large loose materials and send them into the crushing chamber.
02.Magnetic separator
Magnetic separator is a screening device suitable for separating substances with magnetic differences, which can remove iron particles from broken aluminum.
03.Hanging iron remover
A suspended iron remover is a device that can generate a strong magnetic field attraction. It can remove ferromagnetic impurities mixed in materials and effectively prevent accidents caused by large and long iron parts scratching the conveyor belt.
04.Vibrating screen
振动筛分机是指可把大小不同颗粒状物料，从贮料仓中均匀、连续地给到受料装置中去的一种设备。在破碎线中可为破碎机连续均匀地喂料，并对物料进行粗筛分。

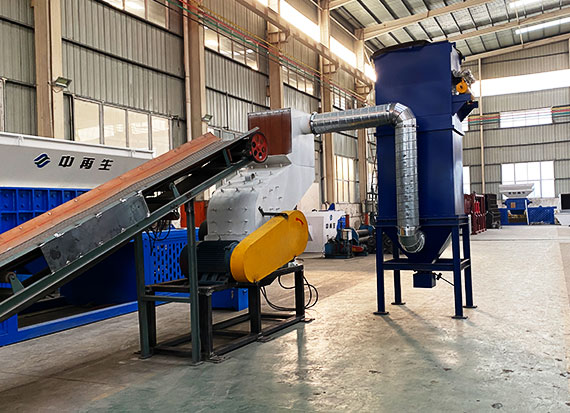

05.Pulse dust collector
Pulse dust collector can clean dust. During operation, the dust containing gas enters the ash hopper through the air inlet duct. Coarse dust particles directly fall into the bottom of the ash hopper, while fine dust particles enter the middle and lower boxes with the turning of the airflow. Dust accumulates on the outer surface of the filter bag, and the filtered gas enters the upper box and is discharged through the exhaust fan to the clean gas collection pipe exhaust duct.
06.Trommel screen
Drum screen is a widely used equipment in sorting production lines, which controls material sorting by controlling particle size and has high sorting accuracy. The cylinder of a drum screen is generally divided into several sections, depending on the specific situation. The sieve holes are arranged from small to large, and the sieve holes on each section have the same aperture. By changing the diameter and range of the sieve, multi-stage screening of materials can be achieved.
07.eddy current separator
The eddy current sorting machine is designed based on the principle that conductors can generate induced currents in high-frequency alternating magnetic fields. When a metal block enters the magnetic roller sorting area, eddy currents are induced inside the metal block. The magnetic field generated by this eddy current is opposite in direction to the original magnetic field and has a repulsive force. The repulsive force can push the metal block forward, achieving the purpose of separation.
