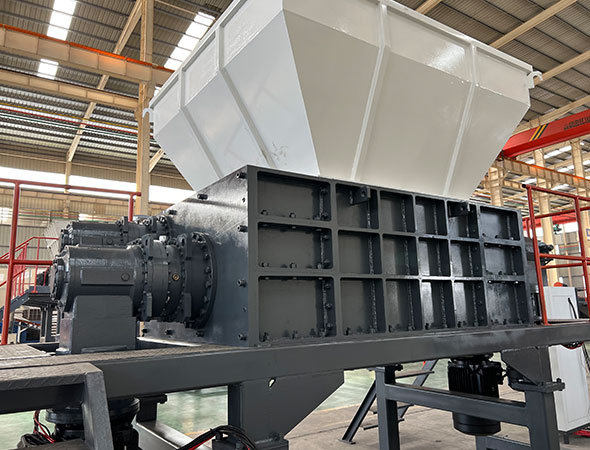

FS130120 Series Four Shaft Shredder

As the name suggests, FS series four axis shredder is composed of four groups of cutter rollers. The four groups of cutter rollers cooperate with each other with different cutter structures.

Application
Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field

Material
Metal drum / Metal frame / Metal scrapPlastic drum / Plastic frame / Plastic palletWood scrap / wood palletWaste paper / cardboard cartonE-wasteAluminum scraps, Aluminum profileWaste rubber, waste tireHousehold wasteIndustrial waste

Product Consultation

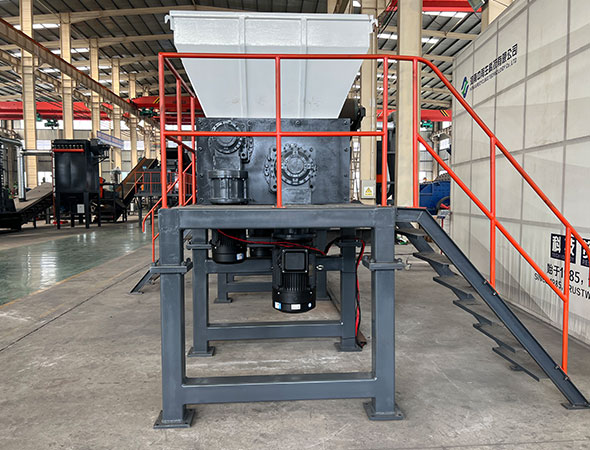

Case site

As the name suggests, FS130120 series four axis shredder is composed of four groups of cutter rollers. The four groups of cutter rollers cooperate with each other with different cutter structures. After the materials enter the shredding box, they are torn into small pieces by the blade tearing and shearing on the four groups of cutter rollers. The four axis shredder provides greater shear force than the two axis crusher, and can handle all kinds of ductile and ductile wastes, and obtain consistent shapes and sizes.

Product Features

1.Four cutter shaft structure

The unique four cutter shaft structure and cutter tooth shape, the lower two groups of cutter rollers are responsible for the main crushing, and the upper two groups of cutter rollers are responsible for the auxiliary crushing and gripping, reducing the invalid gripping, reversing and idling time, with high efficiency.

2.International brand bearing

The brand bearing has guaranteed quality and high impact load resistance; The quadruple seal properly protects the bearing from sewage, sludge and dust, which makes the bearing last longer.

3.Heat treatment process

The proper use of heat treatment process makes the comprehensive performance of the cutter box better, and it is not easy to deform after long-term use; Significantly improve the mechanical performance of parts, greatly extend their service life, and achieve one at most.

Product Parameters

Model	Power(kW)	Grinding chamber dimension(mm)	Total Weight(t)	Size(mm)
FS100100	22+22	1090X1080	5	3550X1280X2550
FS100120	22+22	1220×1040	5	3000X1460X2550
