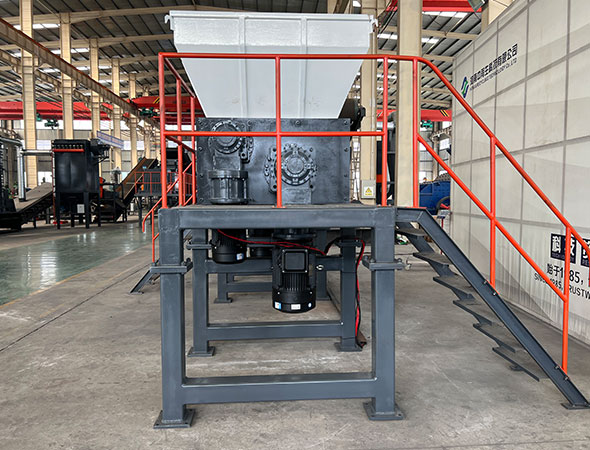

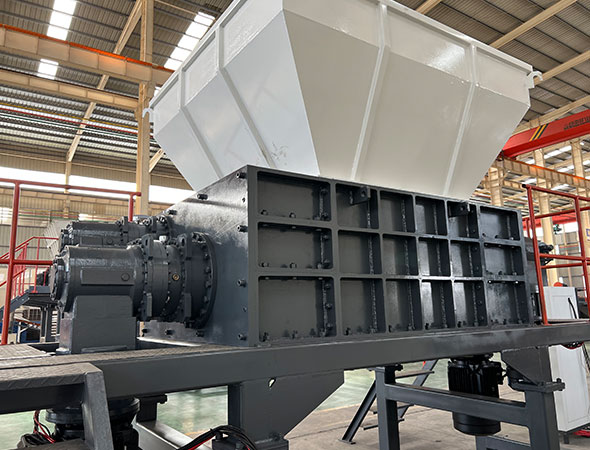

The FS130120 Four-Shaft Shredder is a high-performance metal recycling machine designed for processing a wide variety of scrap and industrial waste materials.
The FS130120 Four-Shaft Shredder is a high-performance industrial shredder designed for efficient and versatile processing of various scrap materials. Its robust four-shaft design ensures uniform shredding, high throughput, and reliable operation even with tough or bulky materials.
Heavy-duty frame and rotors provide long service life and stable operation.
Four-shaft configuration allows continuous feeding and high-output shredding.
Capable of shredding scrap metal, aluminium profiles, copper, brass, stainless steel, and mixed metal scrap.
Equipped with overload protection and emergency stop systems for secure operation.
Ideal for preparing materials for further processing, such as separation, recycling, or melting.
| Model | FS8080 | FS80100 | FS100100 | FS100120 | FS130120 |
| Overall dimension(mm) | 2350x1195x2200 | 2680x1200x2200 | 2650x1460x2550 | 2850x1460x2550 | 3650x2000x3100 |
| Shredding chamber(mm) | 840×830 | 1050×830 | 1020×1040 | 1220×1040 | 1300×1200 |
| Main blade rotation diameter(mm) | 245 | 245 | 320 | 320 | 430 |
| Spindle speed(r/min) | 16-25 | 16-25 | 16-25 | 16-25 | 10-15 |
| Blade quantity(pcs) | 42 | 54/27 | 25 | 30 | 24 |
| Blade thickness(mm) | 18.5 | 18.5/37 | 40 | 40 | 50 |
| Motor power(kw) | 11+11 | 15+15 | 18.5+18.5 | 22+22 | 2×15+2×30 |
