SC1214 Metal Hammer Mill-Tong Li

SC1214 Metal Hammer Mill

Sc1214 crusher is a kind of mechanical equipment that can crush and reuse the waste aluminum products on the market.

Application
Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field

Material
Metal Chips Scrap Steel Raw Aluminum Hardware Scrap Home Appliances Cooked Aluminum

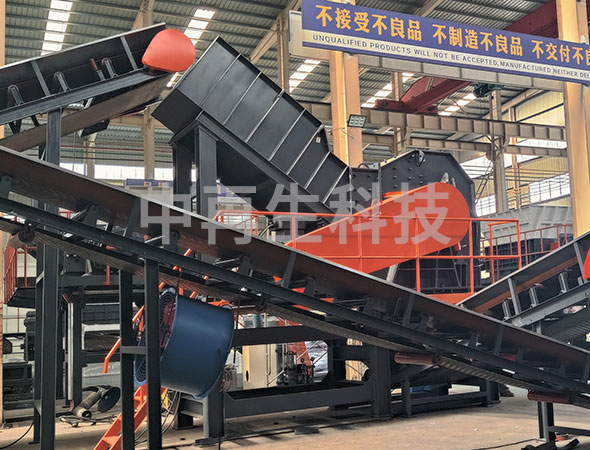

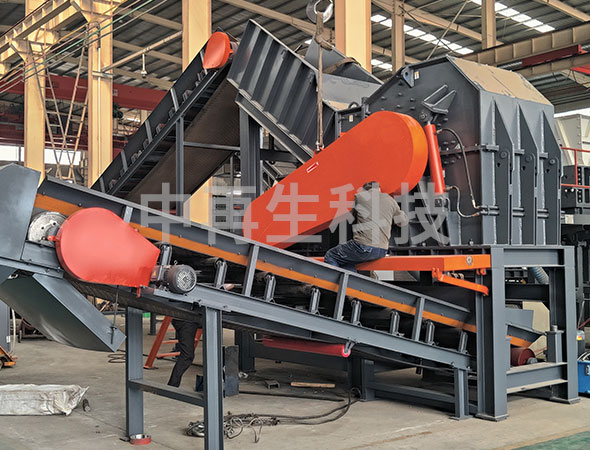

Case site

Sc1214 crusher is a kind of mechanical equipment that can crush and reuse the waste aluminum products on the market. The machine base is narrow at the top and wide at the bottom, with good stability. The internal structure of the equipment is a shaft connecting multiple fixed cutter heads. The fixed cutter is S-shaped, which can be overturned and used twice. The fixed cutter plays the functions of forced feeding and forced crushing in the equipment. When encountering flammable and explosive recycled tanks, it can discharge the vent to eliminate the hidden dangers caused by explosion.

Product Features

1.The middle of the cutter head is a forging hammer

The middle of the cutter head is a forging hammer head, which is forged from the steel bar of the train wheel, with good density, economy and durability, and the hammer head is in an arc shape.

2.Materials can be hammered and rubbed in a short time

In the process of crushing, the waste aluminum materials rotate with the hammer head along with the rapid operation of the hammer head. After a short time of beating and rubbing, the particles form and flow out of the screen at the bottom of the equipment.

3.Materials that do not meet the specifications can be broken in the crushing bin

The materials that do not meet the specifications are retained in the crushing bin and continue to be crushed until they meet the size of the screen hole, so as to ensure the consistency of the discharge specifications.

Product Parameters

Model	Power(kW)	Feed size(mm)	Average capacity(t/h)
SC6050	22-37	600×800	0.3-0.5
SC7080	37-55	600×760	0.8-1
SC8010	55-75	1000×800	0.3-0.5
SC1280	75-200	1000×1200	1.5-2.5
SC1210	132-200	1200×650	3-6
SC1214	200-315	600×1200	0.3-0.5
SC1415	55-75	1000×800	0.3-0.5
SC1680	132-200	1300×1500	3-5
SC1690	132-315	1000×900	5-6
SC1614	450-560	900×1660	750
