Q91Y-800 Guillotine shear

Q91y-800 gantry shear adopts the waste shaping and subsection feeding mode of upper compression and two side compression.

Application
Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field

Material
Metal, iron sheet, cast iron, thin iron, thin iron sheet, light and thin materials, iron and steel, color steel tile, scrap steel, scrap iron, aluminum alloy, channel steel, angle steel, angle iron, copper plate, metal plate, aluminum profile, scrap steel bar, aluminum plate, iron plate, steel plate, round steel, scrap metal

Product Consultation

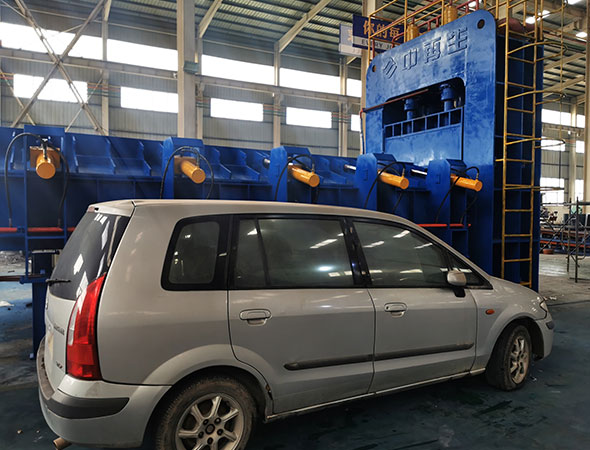

Case site

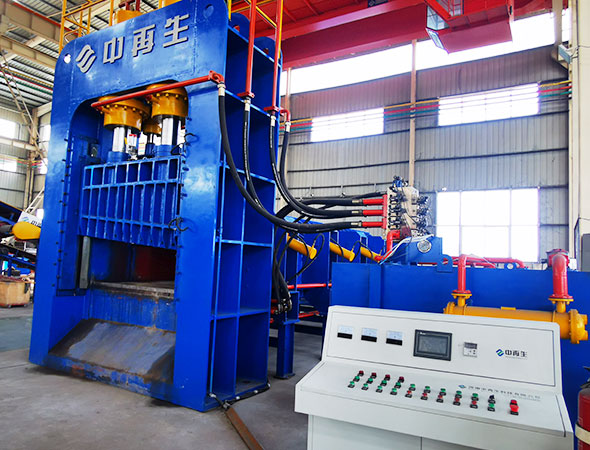

Q91y-800 gantry shear adopts the waste shaping and subsection feeding mode of upper compression and two side compression. It has the characteristics of wide cutting inlet and deep feeding cavity. After shaping and shearing, the sheared material is rectangular, with high output and remarkable production efficiency. It adopts hydraulic transmission and automatic electrical control system, which has the characteristics of stable operation, reliable operation and simple operation. The shear is in the form of single-layer material box. It is generally applicable to metal recycling and processing plants, scrap car dismantling yards, smelting and casting industries, and cold cutting of various section steels and metal structural parts to process them into qualified furnace charge.

Product Features

1.Automatic buttering function of cutting edge

The automatic buttering function of the cutting edge ensures the automatic lubrication of the upper and lower slides on both sides of the blade, reduces friction, and extends the wear life of the blade wear plate. The hydraulic oil in the oil tank is equipped with a temperature monitor for automatic cooling. So as to ensure that the hydraulic oil works under normal temperature, extend the service life of the oil pump and oil seal in the oil cylinder, and the pressure will not decay.

2.Shear band pressure sensor

The shear force is equipped with a pressure sensor to achieve the automatic return of the limited pressure and ensure the normal operation of the equipment. Operation mode: manual operation mode, remote control operation mode and full-automatic operation mode. Customers can change the operation mode at will, which is more convenient and labor-saving, reducing labor cost and increasing output.

3.The material of shear blade is H13

The material of the cutting blade is H13, and the blades of different materials can be customized according to the user’s requirements. The gantry shear, with a cutting edge width of 1.2-1.8m, is more suitable for cutting wider waste. The silo is automatically pushed and cut with high efficiency. The remote control of the whole machine makes it easier to operate. It is one of the necessary equipment for the future development of the waste recycling industry.

Product Parameters

Model	Maximum shear force(T)	Cutting length(mm)	Shear frequency(min)	Motor(kw)
Q91Y-800	800	900	4.5	360
