Metal packer

Metal packer is mainly used in recycling and processing industry and metal smelting industry.

  • Application
  • Construction field, automotive field, electronics field, packaging field, industrial manufacturing field, household aluminum field
  • Material
  • Metal scrap, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disaGW-videossembled automobile shell, waste oil drum
Case site

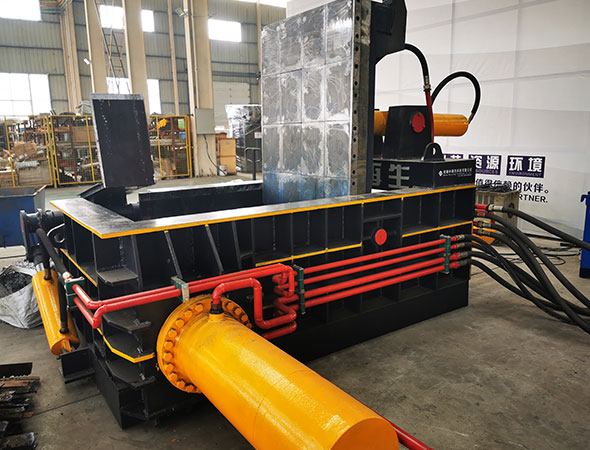

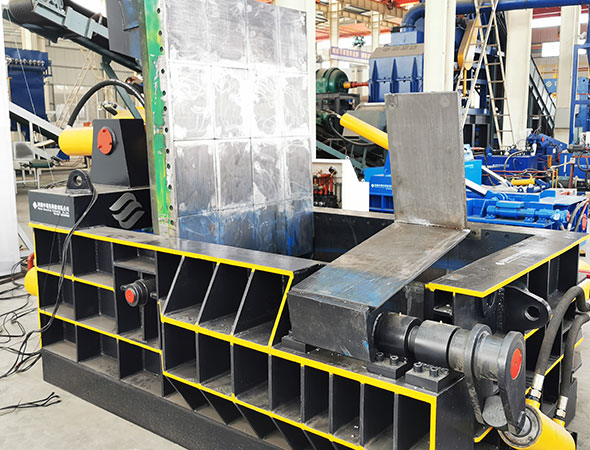

Metal packer is mainly used in recycling and processing industry and metal smelting industry. Place the packed materials in the material box of the baling machine, press the hydraulic cylinder, compress the packed materials into various metal packages. The machine adopts hydraulic transmission, compact structure, easy to move and install, simple to operate, easy to maintain, and does not need foot screws during installation. Users can customize packing specifications and sizes according to their needs, and cooperate with transportation or storage. It is a good equipment to improve labor efficiency, reduce labor intensity, save manpower and reduce transportation costs.

Product Features

1.Hydraulic drive

Hydraulic drive is adopted, and manual or PLC automatic control operation can be selected. There is no need to install foot screws. Diesel engine can be used as power in places without power supply.

2.There are two forms of bag turning and bag pushing

There are two forms of bag turning and bag pushing. There are eight extrusion forces ranging from 63 tons to 400 tons, and the efficiency ranges from 0.5 tons / hour to 20 tons / hour.

3.Rotary closed cover structure

It adopts a rotary closed cover structure, with a large opening area of the material box, especially suitable for large, empty and thin materials.



Product Parameters
Model Nominal thrust(kn) Compression chamber size(mm) Package size(mm) Equipped with power(kw)
Y81-63 630 1000*600*500 (180-250)*190*190 7.5
