SS40150 Series Single Shredder Shaft

Application areas:

Waste tire wood waste packaging paperCardboard and other paper waste copper coreAluminum core cable and composite material cable carpetLabor protection clothing and other chemical fiber productsIndustrial solid waste glass fiber products and other composite materialsDomestic waste, waste plastics and other solid wastes

Product Introduction

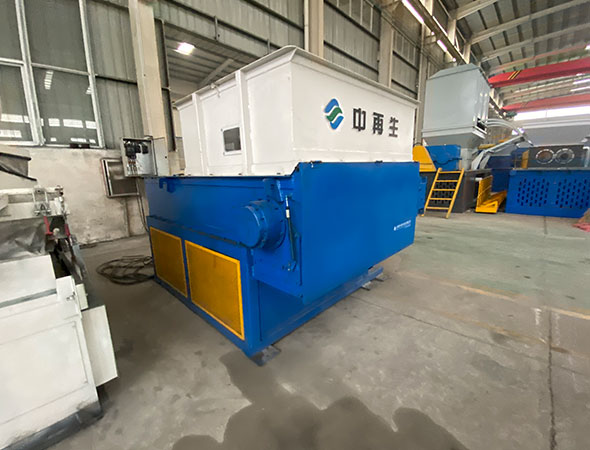

The SS40150 single axis shredder is mainly suitable for shredding and processing various industrial wastes such as plastics, wood, paper, household appliances, solid waste, wires and cables, tires, etc. Through its unique shredding mechanism design, it can effectively shred various materials into small pieces for subsequent recycling and processing. According to the different shredded materials, different types of knife rollers can be configured.

%e8%af%a6%e6%83%8501
%e8%af%a6%e6%83%8502

According to the different shredded materials, different types of knife rollers can be configured. The SS40120 single axis shredder is usually equipped with high-performance knife rollers, suitable for shredding medium hardness and softer materials such as PE, PP, PET materials, paper, wires and cables. At the same time, there are also knife rollers specially designed for hard materials such as ABS, PC, nylon, etc. to choose from.

%e8%af%a6%e6%83%8503
%e8%af%a6%e6%83%8504

Product advantages

  • 1.The blade is made of cold working die steel

    The blade is made of cold working die steel, with good strength, high toughness and high cutting performance. The blade has four cutting edges, which can be rotated 90 ° after wear and continue to be used.

  • 2.External bearing design

    The external bearing design can prevent water and dust, and prolong the service time of the bearing. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsive force.

  • 3.Dual drive option

    Hard tooth surface reducer has high transmission efficiency, strong bearing capacity and low noise.

Technical Parameter

Model Power(kW) Grinding chamber dimension(mm) Total Weight(t) Size(mm)
SS40100 45 1410×1000 8 2825x2004x1875
SS40120 75 1410X1200 9 2825x2564x1875
SS40150 90 1410X1500 9 2825x2964x1935
SS48150 75 1650X1500 9 3135x2968x2105
SS48200 75 1420X2000 9 3255x4415x2720
