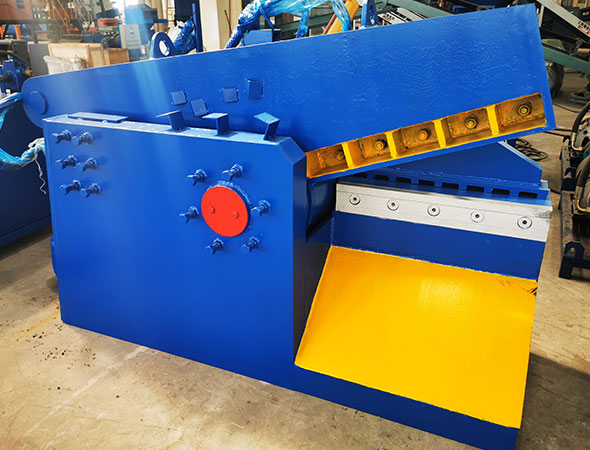

Q43-160 Alligator Shear

Application areas:

Metal, iron sheet, cast iron, thin iron, thin iron sheet, light and thin materials, iron and steel, color steel tile, scrap steel, scrap iron, aluminum alloy, channel steel, angle steel, angle iron, copper plate, metal plate, aluminum profile, scrap steel bar, aluminum plate, iron plate, steel plate, round steel, scrap metal

Introduction du produit

Q43-160 Alligator Shear are applicable to metal recycling and processing plants, scrap car dismantling yards, smelting and casting industries. They can cut all kinds of section steel and metal structural parts in cold state and process them into qualified furnace charge. The crocodile shears are composed of a shearing cylinder, a shearing knife, a sliding block pressing knife, a lower knife seat, a pressing cylinder, etc. during the shearing operation, the hydraulic pump station (power output source) supplies oil to the pressing cylinder so that the sliding block pressing knife is pushed onto the lower knife seat to complete the fixation and compaction of materials, and then the hydraulic pump station supplies oil to the shearing cylinder so that the shearing knife moves down to complete the shearing step.

Product advantages

  • 1.Hydraulic drive

    It adopts hydraulic drive, and the electrical appliance is equipped with a protective device, which has reliable safety performance and convenient operation. Different shear forces and knife edge lengths are available for selection, and non-standard shears can be customized for customers;

  • 2.Improved sealing performance of the machine

    NOK imported oil seal is adopted for the oil seal of main components, which greatly improves the sealing performance of the machine; It takes the lead in using pressure compensated variable displacement pump to effectively improve the shearing force of the machine;

  • 3.Foot screws are not required for installation

    No foot screws are required for installation, and diesel engine can be used as power; Quick hydraulic system or foot switch can be selected, and the efficiency is significantly higher than that of machines in the same industry.

Technical Parameter

Model Maximum shear force(T) Cutting length(mm) Shear frequency(min) Motor(kw)
Q43-160 160 600 6-10 18.5
